Denne CNC kan bearbejde materialer såsom træ, pmma og andre typer plastik, MDF plade, PVC, Akryl, limtræ. bløde metaller såsom aluminium, kobber, sølv mfl.

Perfekt til engravering i diverse materialer

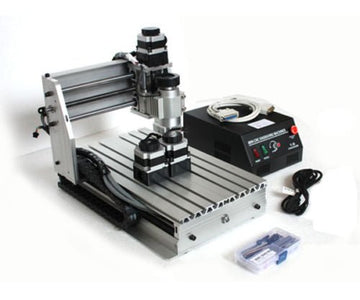

CNC 3020T triaxial engraving machine part parameters:

Shape Dimension : 530 x 403 x 370 mm

Effective Working Travel : X/Y/Z = 200 x 300 x 50 mm

Max Feeding Height : =60mm

Working Table Size : Length/Wide=440X240mm

Lathe structure: 6061/6063 Aluminium alloy

Drive unit: 1204 Double thread Trapezoidal Screw

Sliding unit:: Chromeplate shaft

Spindle motor: spindle motor with direct current(200w)

Cutting tool-holder: ER11/3.175mm

Spindle speed: 300~8000RPM/MIN (PWM stepless speed regulating)

Spindle precision :radial beat acuities 0.03 mm

Empty line speed: 0-2500mm/min (16 subdivided driving down)

Engraving speed: 0-2000mm/min ( different material different speed )

Repeat positioning Accuracy: =0.05mm

Software Compatability:Mach3/Emc2,(Type3,Wentai, ArtCAM)

Command code: G code/.nc/.ncc/.tab file /.txt

Interface: Parallel port

Software environment Windows 2000 / xp

Working Voltage: AC220V/50Hz,110V/60Hz

Machine weight: 24kg(including packaging)

Control box parameters:

Operating Voltage :AC220V/110V

Control unit : 2.5A stepping motor driver plus adjustable spindle speed controller

Computer connection :on board palrallel port

Command code :G code

Acceptable software : Mach3,EMC2

Protection : Emergency stop button "

It can used for engraving:

advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.

Including:

1pcs engraving machine

1pcs controller box

1pcs parallel cable

1pcs power cable

some engraving bit

some clamp tool
