A major feature of the PA6 Neat is its increased mechanical strength as compared to other plastics. The material also features exceptional thermal properties, chemical resistance and a relatively high resistance to corrosion stimulators. Poliamide PA6 Neat belongs to the few materials with low processing shrinkage, approx. 0.3%.

Key features

• exceptionally low processing shrinkage of 0.3%
• a very wide temperature range for prolonged operation as well as a very high temperature up to 160°C for short-time operation
• good tribological properties, including dry friction conditions such as in slide bearing
• chemical resistance to lubricants and oils
• an unusually good adhesion to 3D printer build platforms as compared to other Poliamide-based filaments on the market

Applications

• production of gear wheels and racks, slide bearings, sweep-off gears and guide rolls operated in elevated temperatures up to 120°C on a prolonged basis and up to 160°C on a short-time basis
• all types of ring and plate seals with an increased chemical and corrosion resistance
• end-use parts
• tooling
• functional prototyping
• industrial modelling

Filament specification:

Filament diameter: 1.75mm
Density:  1.14g/cm³
Nozzle temperature: 240
Bed temperature: 80-100°C
Printing speed: 30-70mm/s
Heated chamber: recommended
Verify your spool option: YES

Packaging

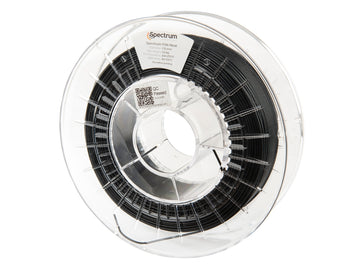

Filament wound on a transparent PC spool. The spool contains information about the type of material, diameter and recommended printing temperature. Each reel is packed in aluminium vacuum bag with ZIP lock with a silica gel inside.

To attain the very attractive properties of PA6 Neat, as regards the technical aspects, you need to follow the basic storage rules for such materials (in a dry and dark place with humidity below 15%). To obtain the best parameters of the printed object possible, it is recommended to dry the material prior to work.
